Center & Side-Driven
Center and Side-Driven Gearboxes Excellent for Deep Ploughing and Perfectly Turning Over Rice Straws and Soil

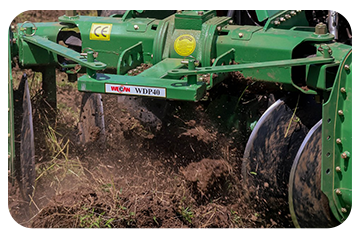

The Active-Cut Solution for Straw & Weeds
The rotation disc allows excellent performance on fields with lots of straw and weeds by actively cutting through residue.

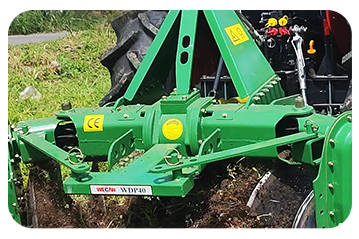

High-Torque Drive in a Full-Body Cast Frame
Driven by a heavy-duty, high-torque Gear Box, the implement's entire main body is forged from a single-piece, full-body casting mold for extreme durability.

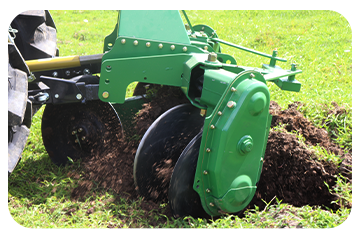

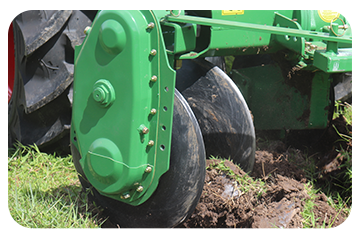

The Durable Interlocked Gear System
The Powerful Side Gear System uses durable, interlocked gears to provide direct and reliable rotational power to the discs, ensuring maximum torque and minimal power loss."
| Model | |
|---|---|
| Agricultural Machinery | PTO Driven Rotating Disc Plow |
| Model | WDP-40 |
| Dimension | |
| Length | 1,395 mm |
| Width | 1,725 mm |
| Height | 1,360 mm |
| Weight | 520 mm |
| Disc | |
| Number of Disc | 6 Disc |
| Brand | NAF |
| Make Make | Italy |
| Type | Plain |
| Diameter | 515mm (Front) 565mm (Rear) |
| Thickness | 4.95mm (Front) 5.30mm (Rear) |
| Concavity | 65.94 (Front) 57.64 (Rear) |
| Disc Spacing | 270mm (Front) 570mm (Rear) |
| Side Angle | 30° |
| Tilt Angle | 0° (Front) 5° (Rear) |
| Main Frame | |
| Dimension | 1395mm x 1425mm |
| Frame Height | 740mm |
| Material | Steel |
| Additional Information | |
| Required Tractor Power (HP) | 42 - 55 |
| Special Features | PTO-Powered, Rotating Disc Plow, Width of cut can be Adjusted |
