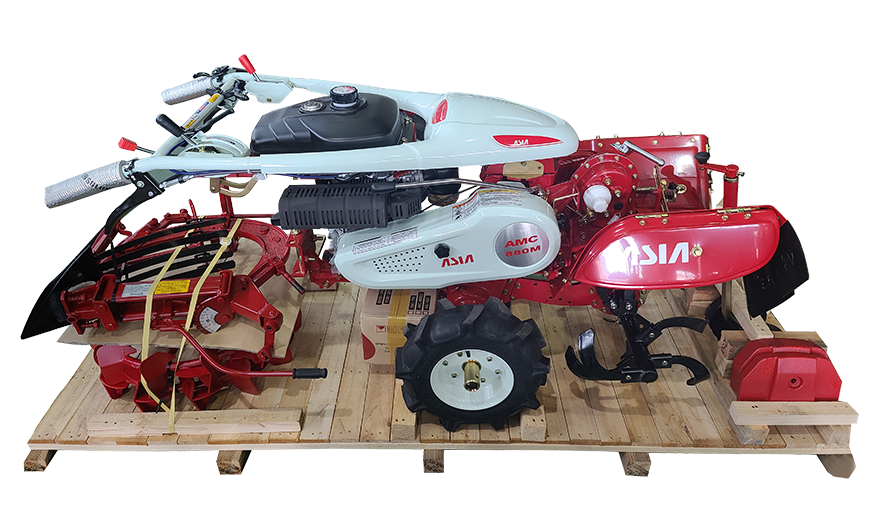

Three Implements Included

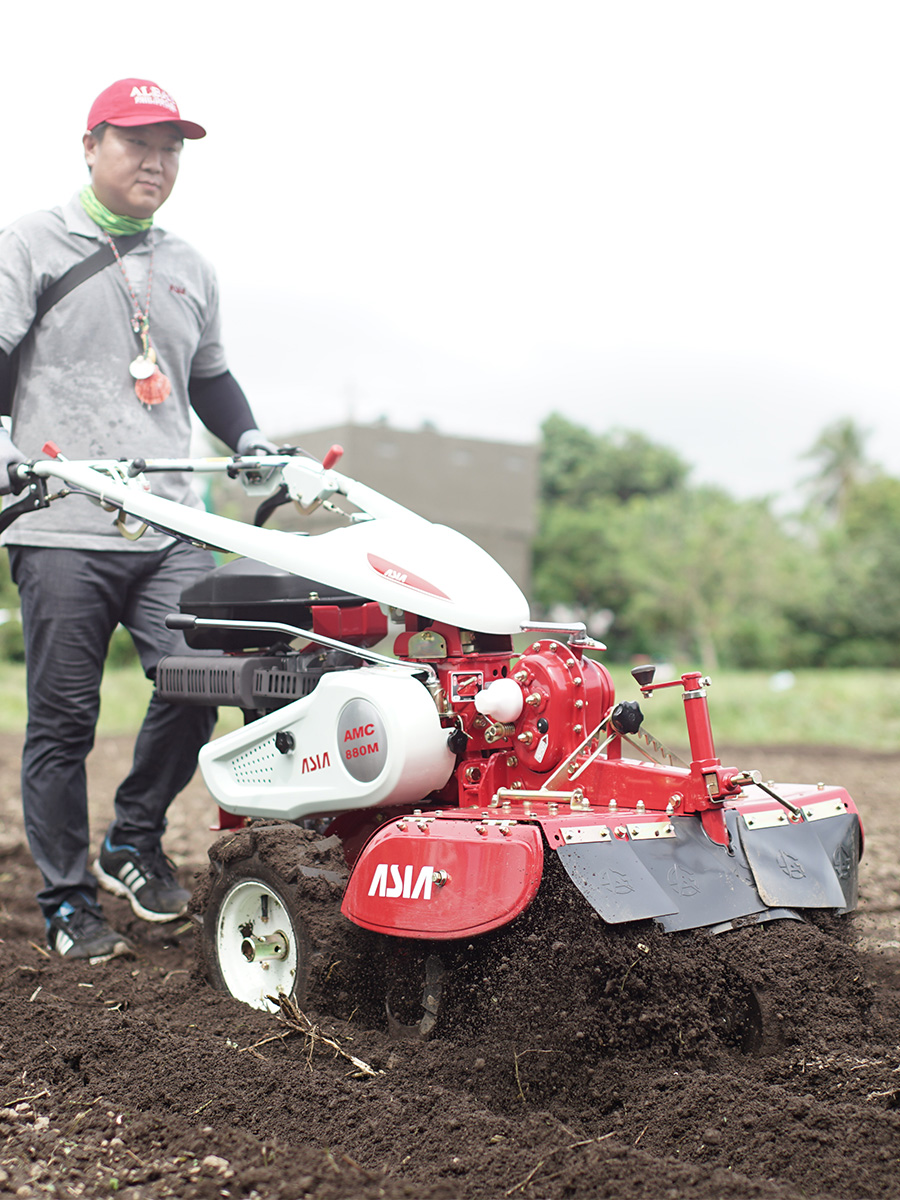

Rotary Tiller (RT60)

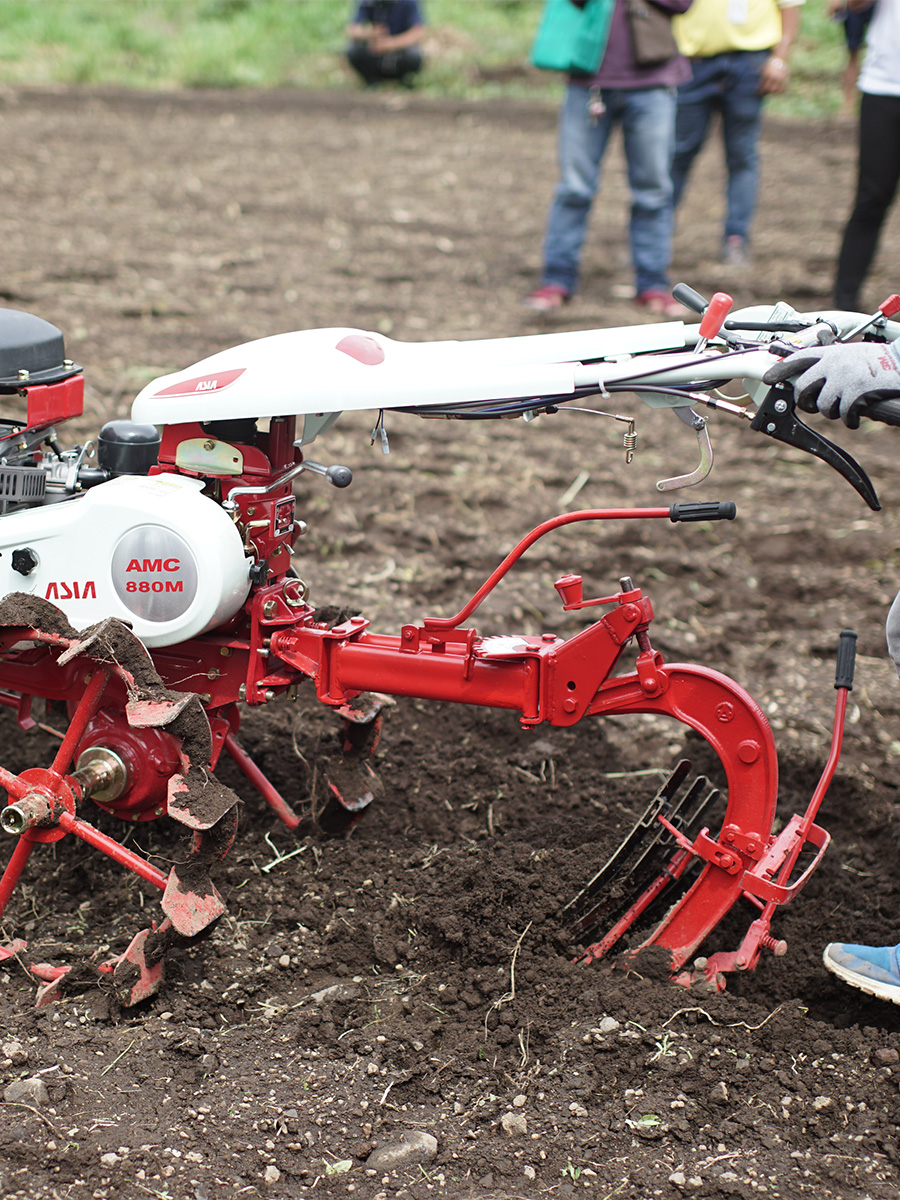

Plow (AP-25)

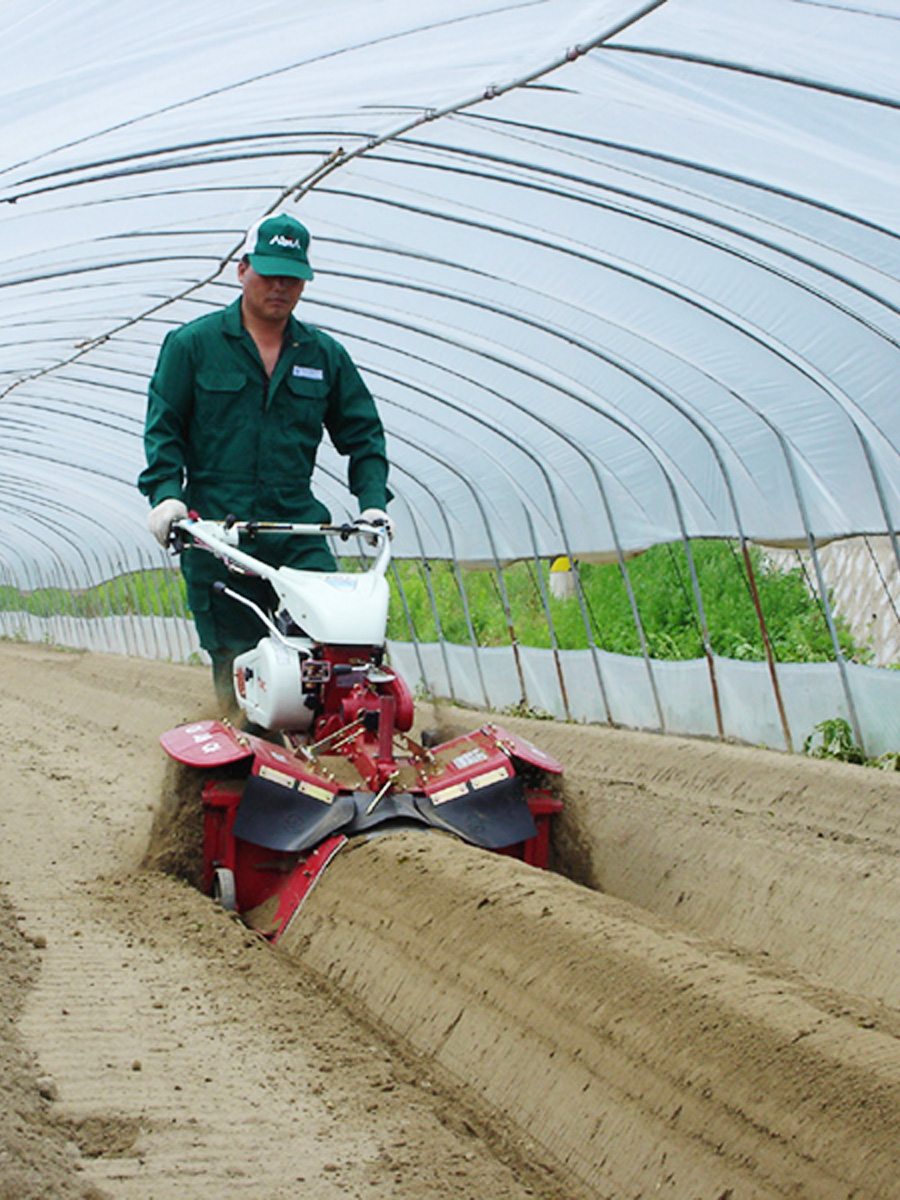

Bed Former (AF-300)
Packed With Features To Help Accomplish Your Goals

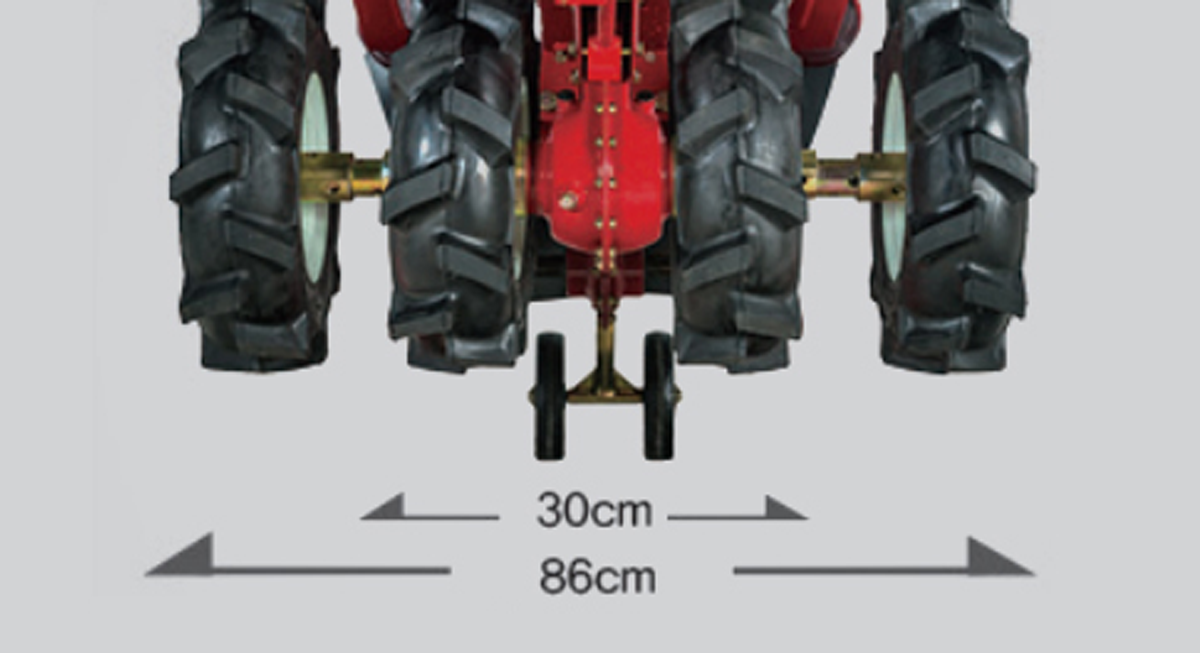

Freely adjustable tread

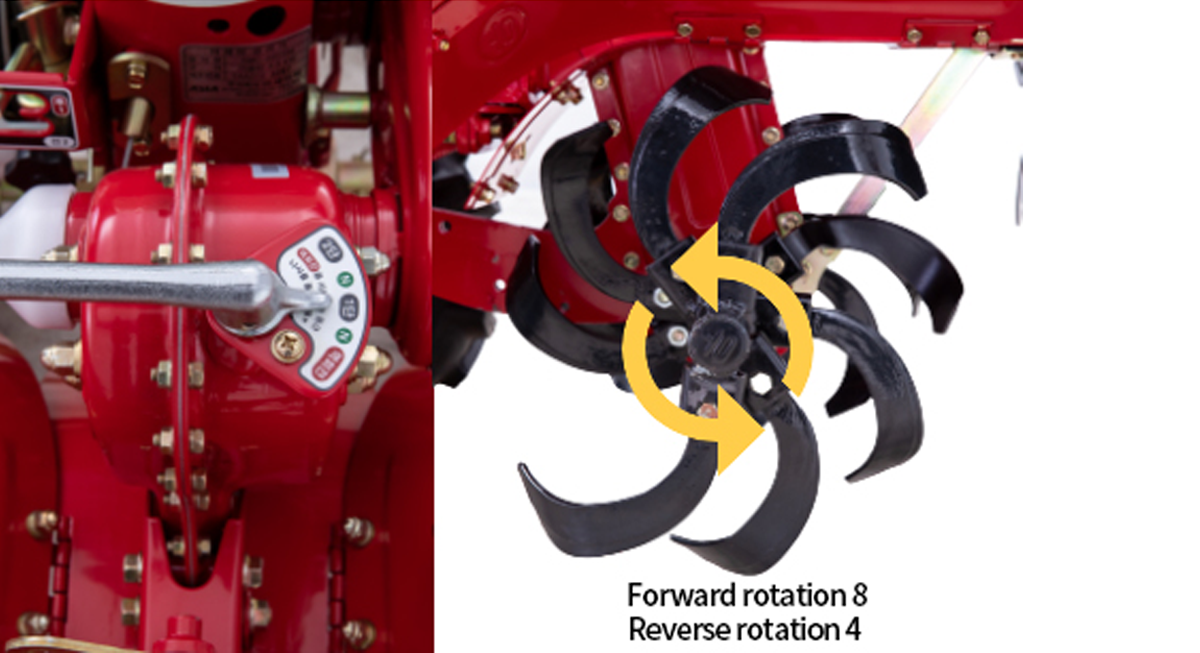

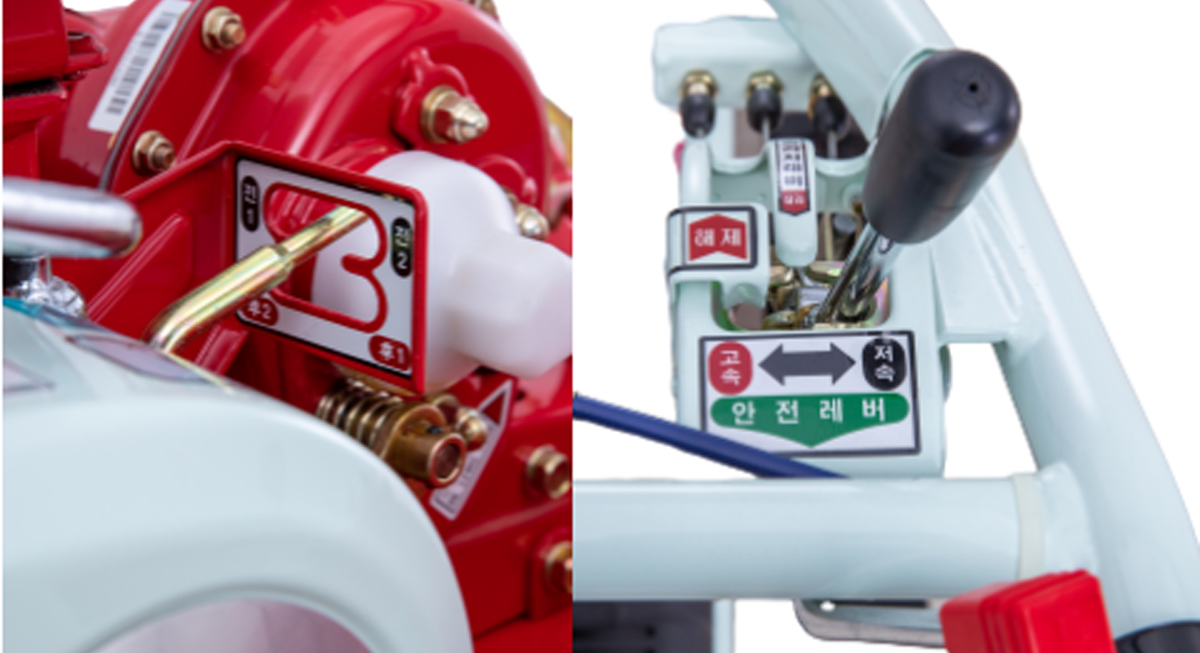

Multi rotation speeds for rotary blades

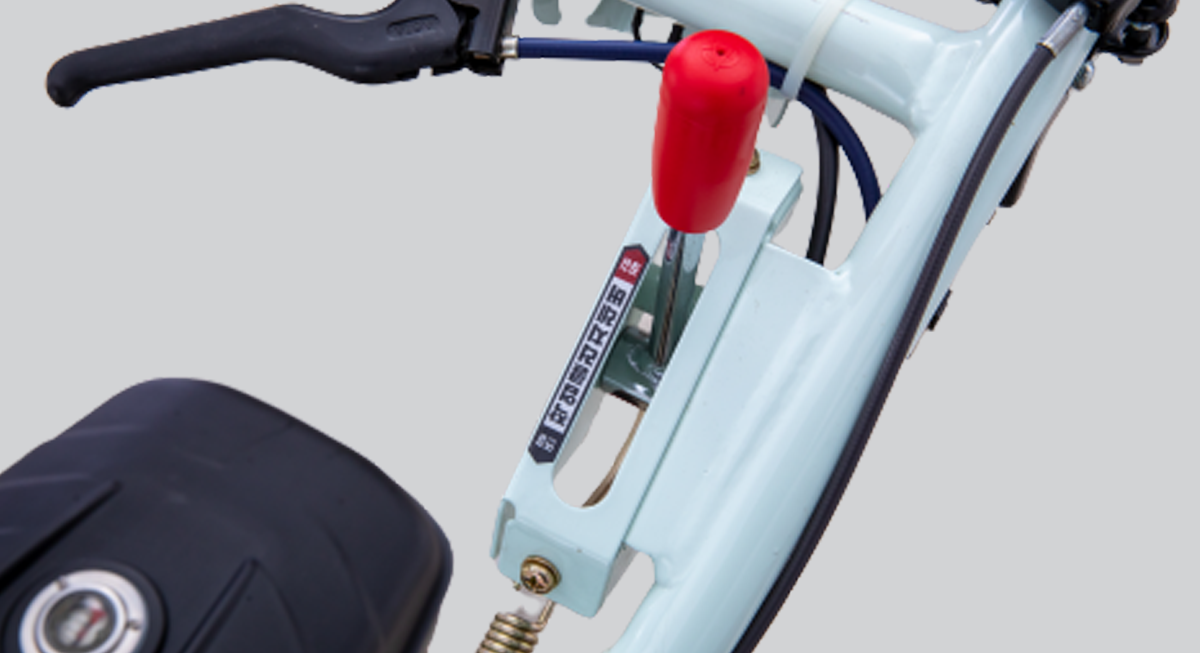

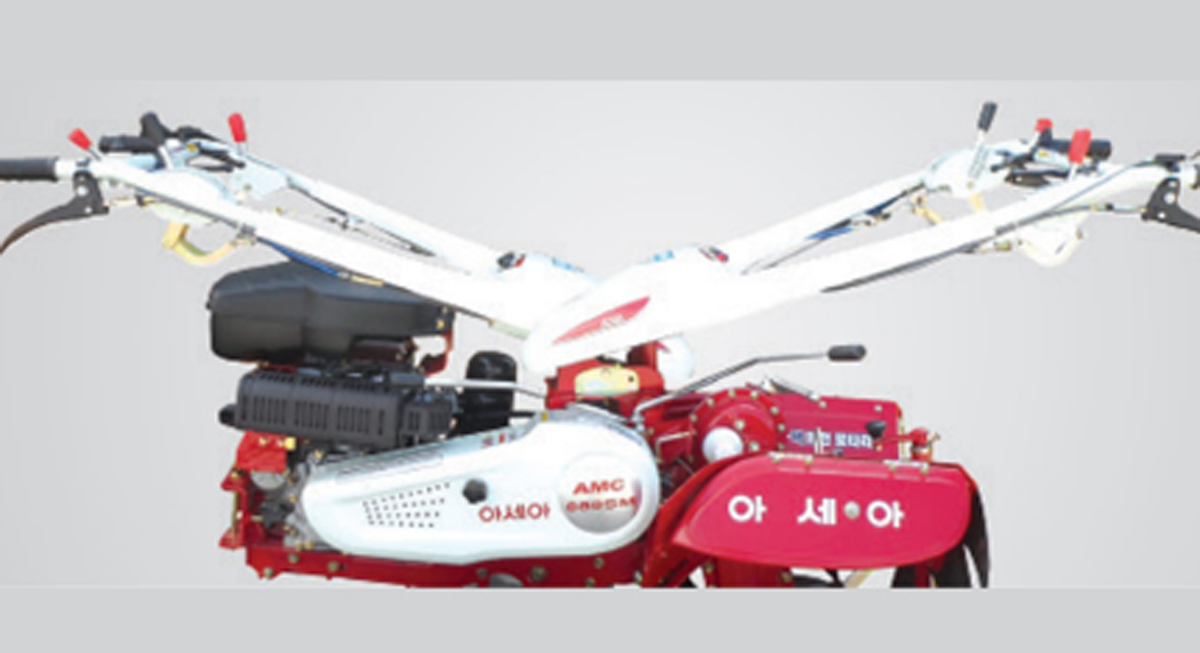

Changeable shift lever direction

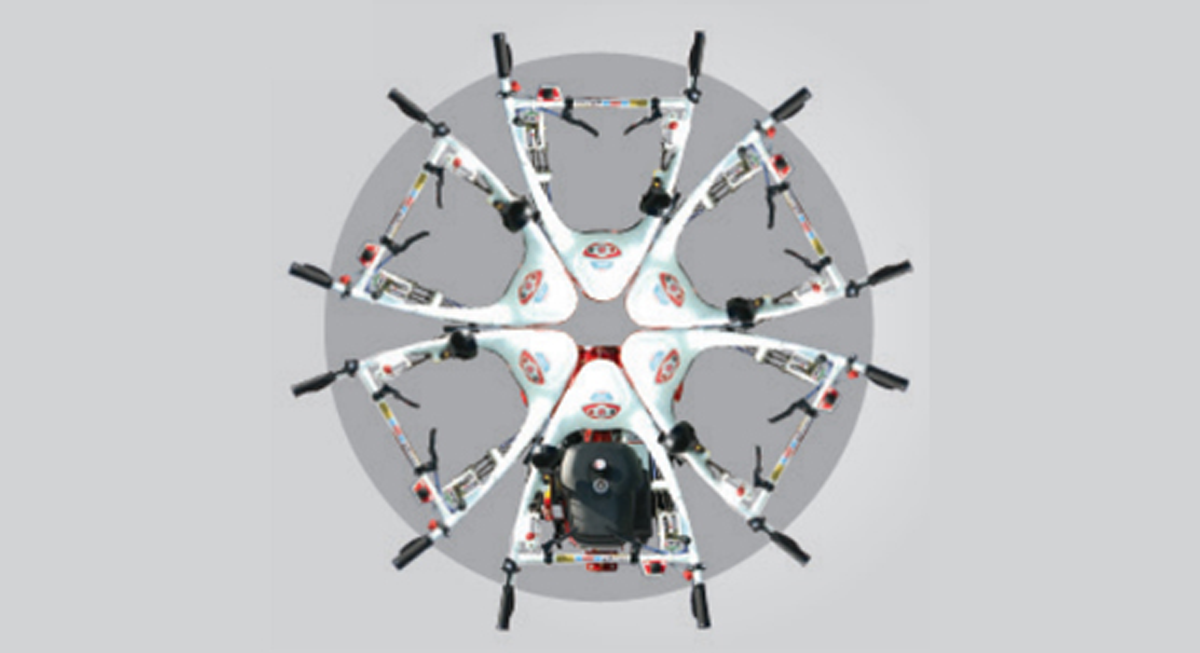

16-step turning steering handle

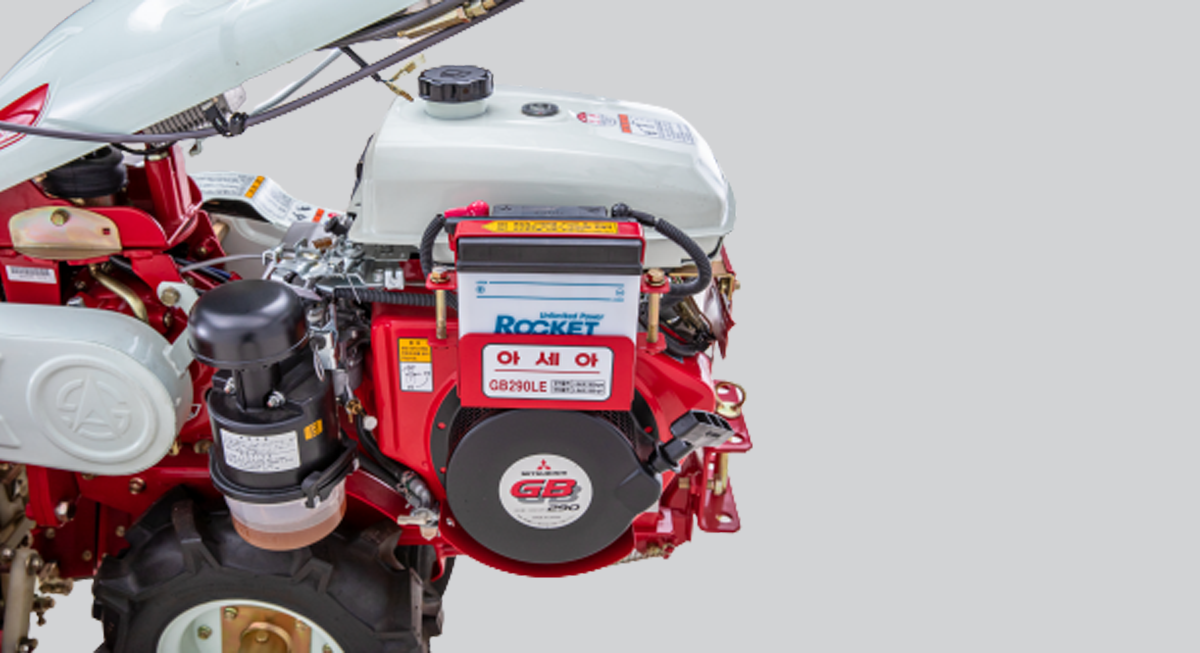

Powerful electronically controlled engine

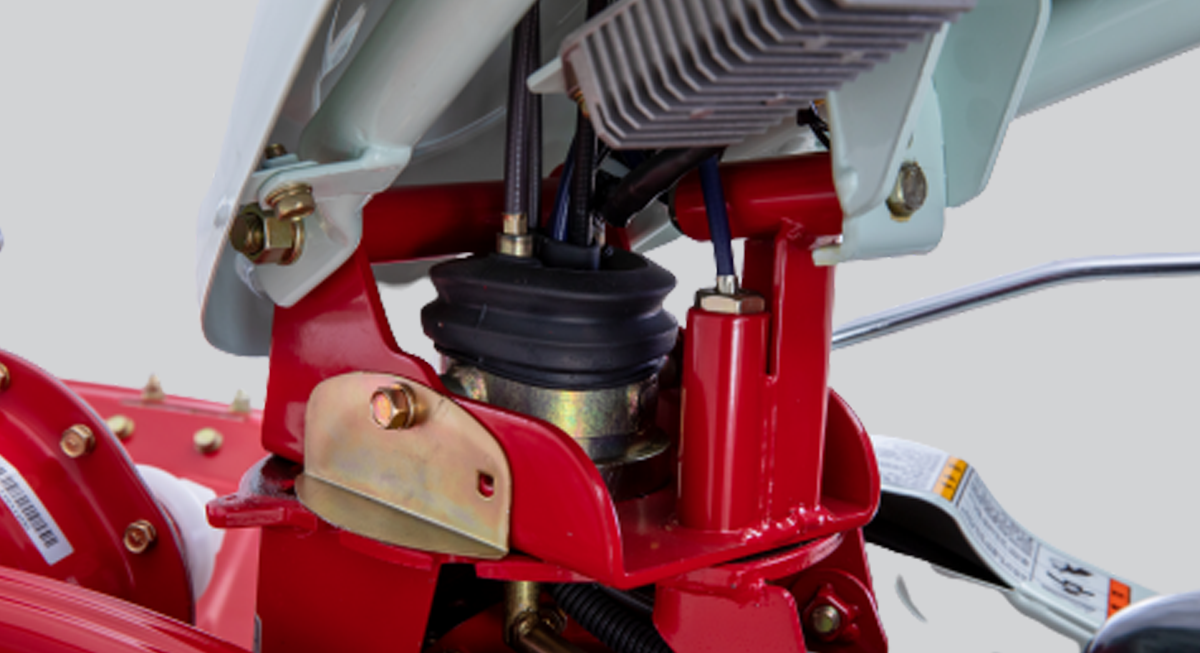

Auto switching one-touch steering clutch lever

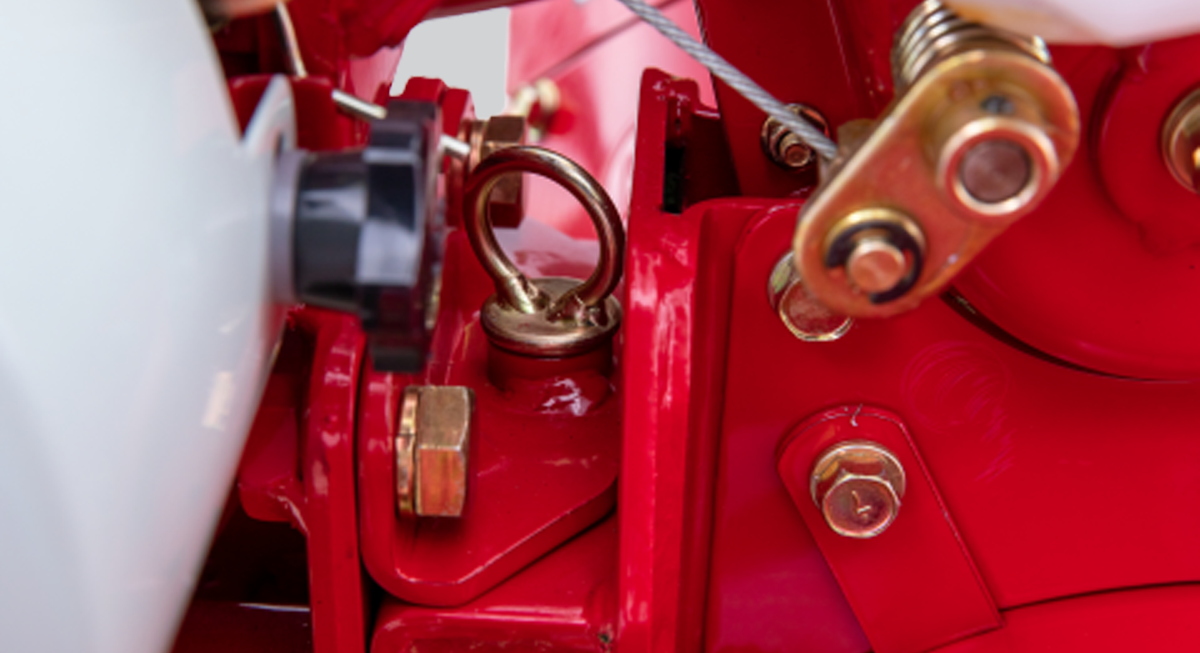

Easy to attach and detach hitch
Equipped with clutch for attachment
4 forward and 4 reverse speed gear box
| Model | |
|---|---|
| Agricultural Machinery | Walking-Type Agricultural Tractor |
| Model | AMC-880M |
| Dimension | |
| Length | 1852 |
| Width | 808 |
| Height | 905 |
| Weight | 165 |
| Engine | |
| Model | G810L |
| Type | Four-Stroke, Single Vertical Cylinder |
| Ignition | Spark Ignition |
| Horsepower | 6.5 |
| Rated Power | 5.4 kW Maximum |
| Fuel Type | Gasoline |
| Tank Capacity | 7.45 |
| Cooling System | Air-Cooled |
| Starting System | Rope-Recoil |
| Type of Clutch | |
| Main Clutch | Idler |
| Steering Clutch | Steering Clutch Levers |
| Tilling Clutch | Lever-Actuated |
| Transmission System | |
| Engine to Input Shaft | V-Belt & Pulley |
| Engine | Low Speed: 76.2 x 2LA High Speed: 88.9 x 1LB |
| Input Shaft | Low Speed: 190.5 x 2LA High Speed: 114.3 x 1LB |
| Belt Size | Low Speed: LA-44.5 High Speed: LB-40 |
| Input Shaft to Axle Shaft | Chain and Sprocket |
| Axle | |
| Type | Spline (6 Straight Splines) |
| Diameter | 27.6 |
| Length | 230 mm |
