All of tasks for crop management can be accomplished with this machine.

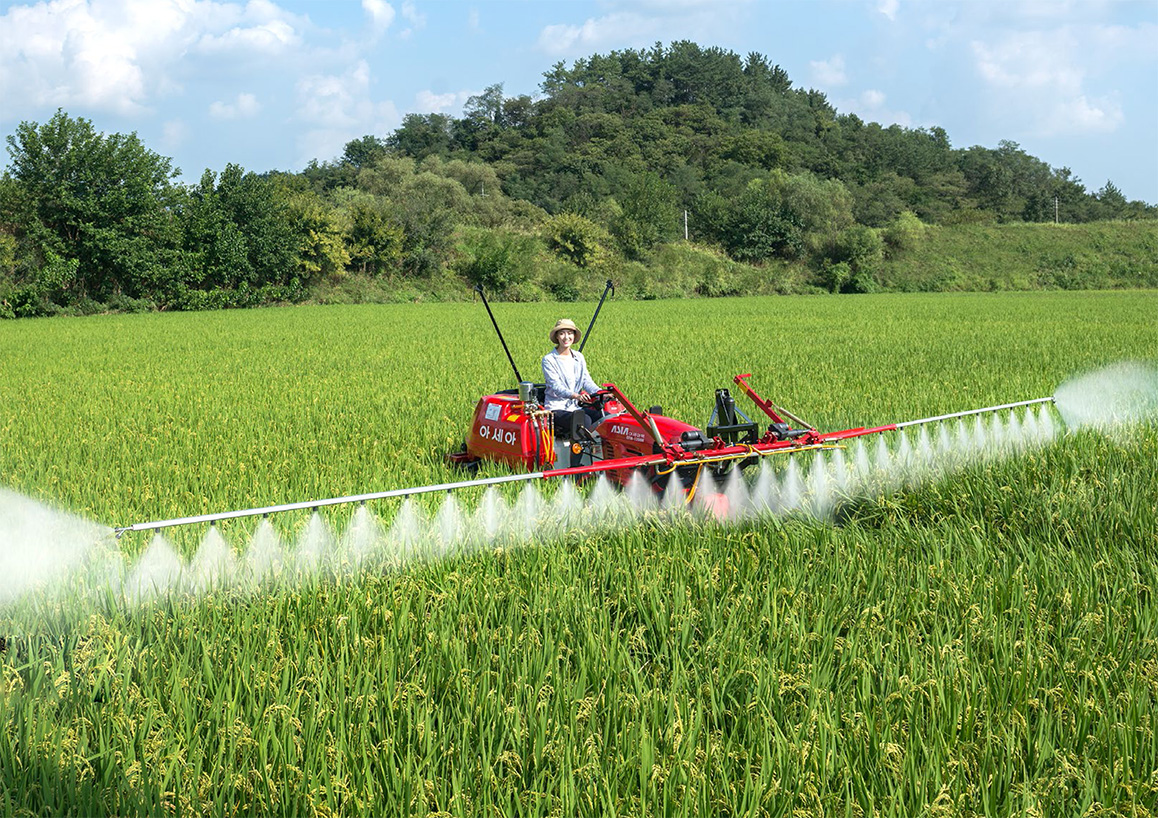

Powerful Downward Spraying & High Efficiency
The nozzle's powerful downward airflow ensures even chemical coverage and adherence to the lower parts of crops for superior results, achieving an outstanding work rate of 15 to 25 acres sprayed in a single 8-hour day.

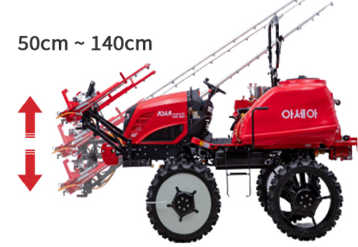

Adjustable boom height
Adjustable from 50 to 140 cm(20~55 inches) depending on crops.

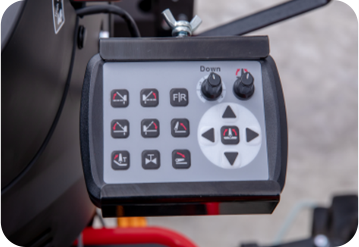

Integrated controller
You can operate the boom easily with the microcomputer integrated remote control.

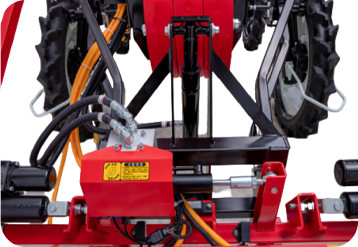

Hydraulic Cylinder
By adopting a hydraulic cylinder, it is more robust and has quicker control response.

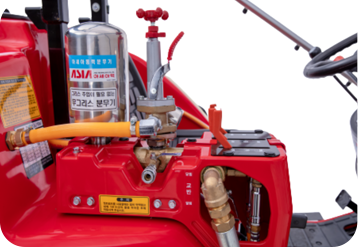

Watering
The watering with jet pump makes it quick and easy to fill the tank with water from reservoirs and streams.

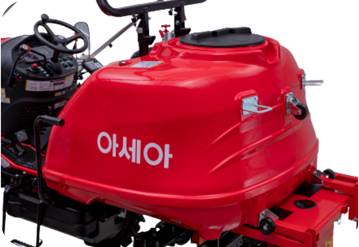

Dedicated chemical tank
FRP chemical tank

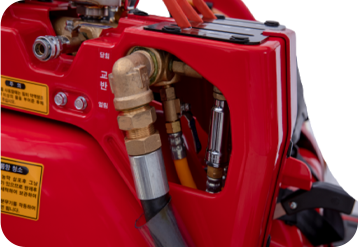

Line filter
Built-in line filter to prevent nozzle clogging.
| Model | |
|---|---|
| Agricultural Machinery | Boom Sprayer |
| Model | SB-2000 |
| Dimension | |
| Length (mm) | 4300 |
| Width (mm) | 1,580 (Boom: 9,150) |
| Height (mm) | 2,890 (when working : 2,625) |
| Weight (kg) | 1,370 (including vehicle) |
| Sprayer Pump | |
| Type | GX100A (In-line 3 plungers) |
| RPM (rpm) | Low speed : 560, High speed : 770 |
| In-flow rate (ℓ/min) | 72 |
| Pressure (kg/cm²) | 10~20 |
| Drive type | Shaft with universal joint |
| Fertilizer application width (m) | basic 12 (extended 16) |
| Chemical Tank | |
| Capacity (ℓ) | 600 |
| Stirring type | Flowing liquid stirring |
| Watering Pump Type | |
| Type | Jet pump |
| In-flow rate (ℓ/min) | maximum 100 |
| Pressure (kg/cm²) | maximum 30 |
| Main Machine | |
| Tire (mm) | 940 [120/90-26 6PR] |
| Working speeds | L |
| PTO (rpm) | Low speed : 560 |
| Mounting type | Designated for Riding Garden Tiller |
| Tilling efficiency (ha/work) | 5~10 |
